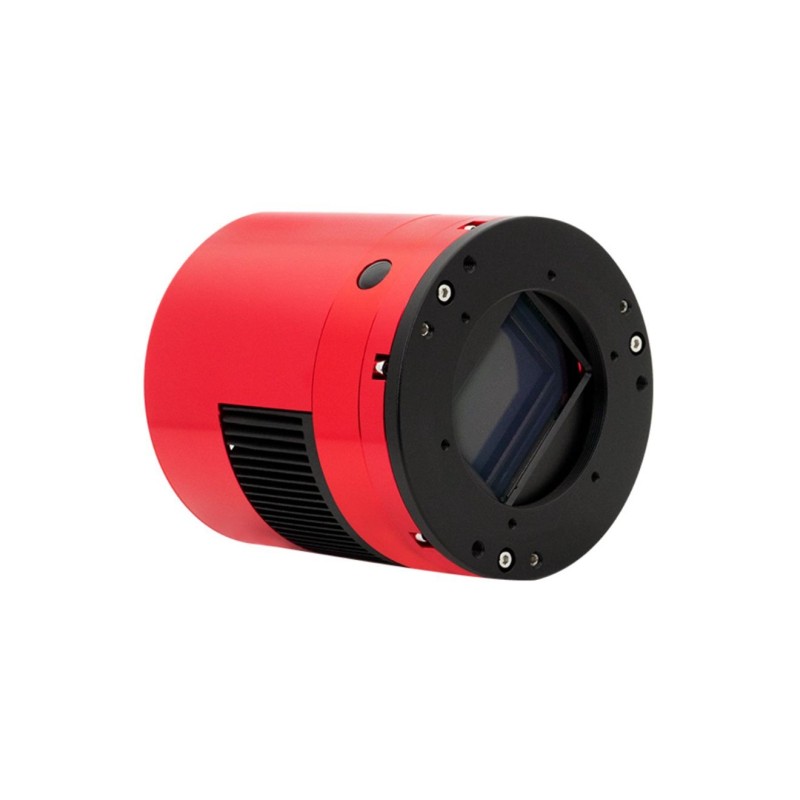

Zwo cooled monochrome camera ASI6200MM Pro

Zwo cooled monochrome camera ASI6200MM Pro

DESCRIPTION
The ZWO ASI6200MM Pro is a high-end cooled monochrome camera featuring a full-frame sensor for astrophotography. Equipped with the Sony IMX455 monochrome back-illuminated CMOS sensor, it delivers a stunning 62 MP resolution (9576 x 6388) with 3.76 µm pixels, perfect for resolving fine deep-sky structures.

Its native 16-bit ADC provides 14 stops of dynamic range, while its peak quantum efficiency exceeds 91%, ensuring excellent sensitivity. Dual-stage TEC cooling can lower the sensor temperature up to 35°C below ambient, drastically reducing thermal noise.

A 512 MB DDR3 buffer guarantees safe data transfer over USB 3.0. The camera features an ST4 auto-guiding port, M54 threading, a removable desiccant cartridge, and an integrated tilt plate for sensor plane adjustment.

Included accessories:
Supplied in a hard case with USB 3.0 cable, ST4 guide cable, 12 V cooling power supply, adapter rings, spacer extensions, replacement desiccant, tilt plate, and complete screw kit.

TECHNICAL SPECIFICATIONS

• Sensor: Sony IMX455 monochrome, CMOS, back-illuminated

• Sensor format: full-frame (36 x 24 mm)

• Resolution: 62 MP (9576 x 6388)

• Pixel size: 3.76 µm

• Dynamic range: 14 stops

• ADC: 16 bits

• Buffer: 512 MB DDR3

• Cooling: dual-stage TEC, -35°C delta

• QE peak: > 91 %

• Read noise: 1.2 – 3.5 e⁻

• Interface: USB 3.0

• Thread: M54x0.75

• Weight: 700 g

• Ports: USB 3.0, ST4, 12 V DC
