Baader Flatfield Box 650
50 mm WRGB flat-field panel, perfectly even illumination, web-controlled brightness, supports telescopes up to 24" fixed or 22" in slit domes.
Baader Flatfield Box 650
Description

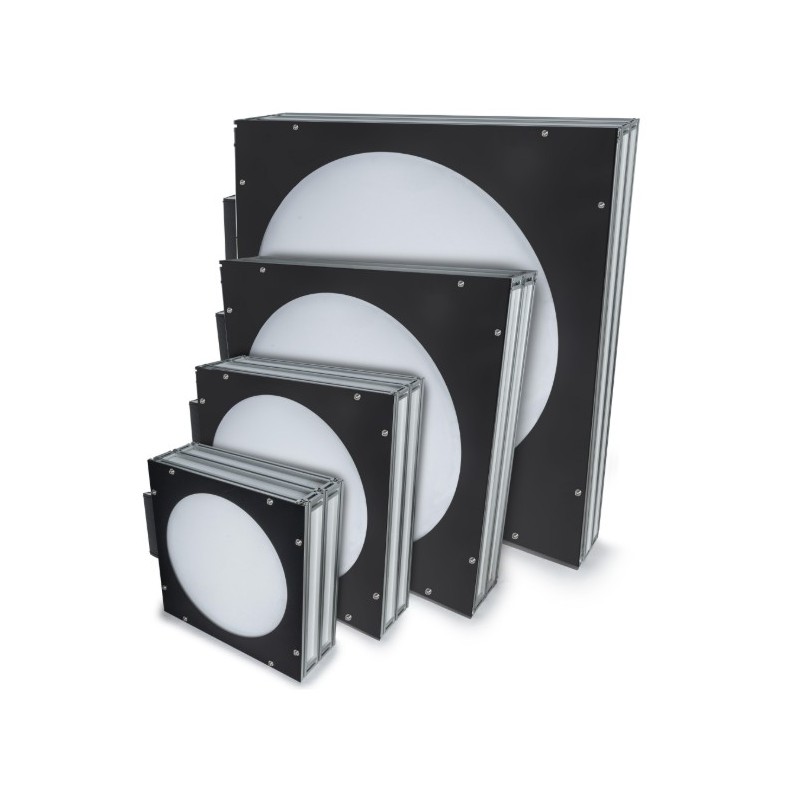

The Baader FFB 650 eliminates sky flats in any observatory setting. Its 742 x 742 x 200 mm chassis houses an infinity-mirror chamber and a dense WRGB LED array, delivering gradient-free light across the visual band. Separate Red, Green, Blue and White channels are managed by the side-mounted FlatPowerBox, with eight user presets stored in non-volatile memory.
A flicker-free driver enables exposures from 1 ms to several seconds, allowing either ultra-short or extended flats to suit sensor sensitivity. The rigid Minitech 30 mm aluminium frame offers wall, tabletop or rotating-dome installation. When dimmed, the panel provides gentle WRGB lighting for observatory interiors. Power is 12 V DC with breaker protection.
The unit covers instruments up to 600 mm (24") on fixed piers or 550 mm (22") in rotating domes, making it ideal for large astrographs.
Specifications
• Clear aperture: 650 mm
• External size: 742 x 742 x 200 mm
• Max telescope, fixed: 600 mm (24")
• Max telescope, dome: 550 mm (22")
• Illumination: independently dimmable WRGB LEDs
• Exposure range: 1 ms – several s, flicker-free
• User presets: 8, web-based UI
• Frame: Minitech 30 mm aluminium profile
• Mounting options: wall, bench, rotating dome
• Power input: 12 V DC, breaker-protected
• Net weight: 19.10 kg
• Manufacturer: Baader Planetarium
• SKU 2205165, EAN 4047825058850
