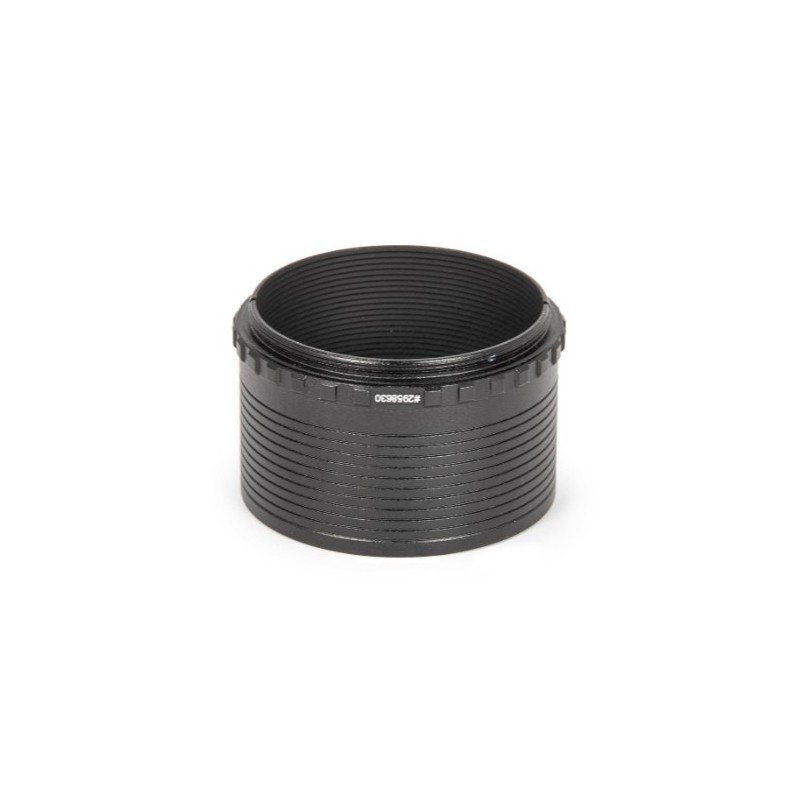

Baader M48 Extension Tube 30 mm

Baader M48 Extension Tube 30 mm

Description

The Baader M48 Extension Tube 30 mm is a versatile adapter designed to fine-tune the optical path length of cameras and accessories equipped with M48 threads.
On the telescope side, it features an internal M48 thread with 3.5 mm depth, while the camera/eyepiece side provides an external M48 thread with 3 mm depth. Its optical path length is 30 mm.

It can also serve as a 2" (50.8 mm) nosepiece with 26 mm insertion depth. The safety kerfs increase mechanical security, and its optical height in nosepiece mode is 4 mm.
Made of high-quality aluminum, this adapter provides a 45 mm clear aperture and weighs only 0.04 kg.

Following Baader’s modern 3 mm thread depth standard, it is fully compatible with new generations of astrophotography cameras and accessories.

Technical Specifications

• Manufacturer: Baader Planetarium

• Model: M48 Extension Tube – 30 mm

• Adapter family: M48 System

• Optical length: 30 mm (or 4 mm in nosepiece mode)

• Adapter type: Extension / 2" Nosepiece

• Usage: Adjusting distances for M48 accessories, M48 / 2" nosepiece

• Telescope side thread: M48 internal, 3.5 mm depth

• Camera/eyepiece side thread: M48 external, 3 mm depth

• Nosepiece insertion: 26 mm with safety kerfs

• Inner diameter / clear aperture: 45 mm

• Outer diameter: 53 mm

• Net weight: 0.04 kg

• Material: High-quality aluminum

• Compatible with: Baader Planetarium and M48 system
