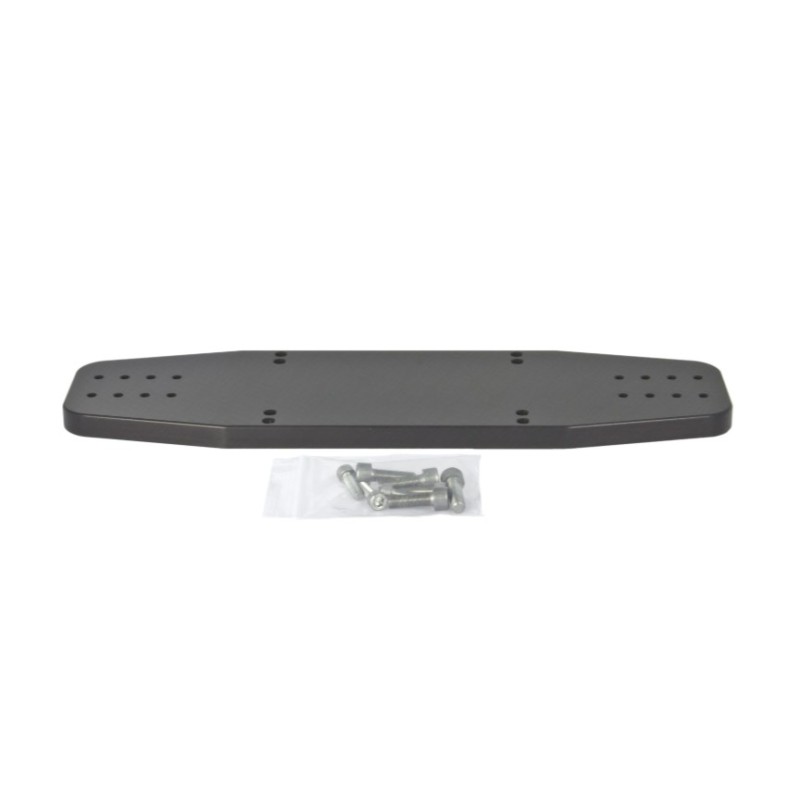

Baader Baseplate 400 mm for Guidescope Rings (Size III)

Baader Baseplate 400 mm for Guidescope Rings (Size III)

Description:
The Baader 400 mm baseplate is optimized for use with Baader guidescope rings Size III, while also supporting Sizes I and II. It accommodates auxiliary instruments with tube diameters ranging from 60 to 185 mm, offering flexibility for parallel mounting configurations.

This side-mounted baseplate is specially designed to integrate with Baader Sidewings, allowing precise installation of a secondary OTA alongside the main instrument. It is compatible with premium mounts such as 10Micron, Astro-Physics, and PlaneWave.

A thread on the underside enables the attachment of Baader 1 kg stainless steel counterweights (#2951401) to help balance the setup in dual-telescope applications.

Technical specifications:

• Product name: Baseplate 400 mm for Guidescope Rings (Size III)

• SKU: 1500340

• Bearing surface: 400 mm

• Compatible tube diameters: 60 – 185 mm (Sizes I, II, III)

• Sidewing compatible: Yes

• Counterweight compatible: Baader 1 kg #2951401 (underside attachment)

• Net weight: 1.23 kg

• EAN: 4047825029874

• Compatible brands: 10Micron, Astro-Physics, PlaneWave

• Manufacturer: Baader Planetarium
