Description

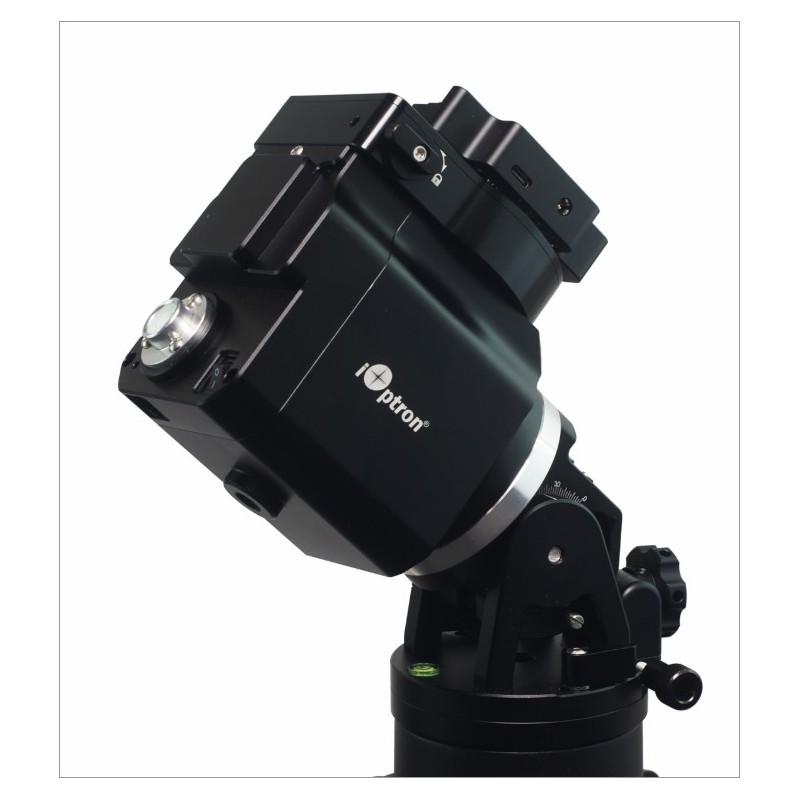

The iOptron HAE16C mount offers an exceptional combination of lightweight portability, advanced engineering and precise tracking. Designed for mobile astronomers or compact observatory setups, it features a strain wave gear (harmonic drive) on the RA axis and a backlash-free belt system on the DEC axis. Despite weighing only 2.6 kg, the HAE16C can carry up to 8.2 kg without a counterweight.

This version includes the Go2Nova 8411 hand controller with OLED display, giving full access to a comprehensive GoTo system and thousands of celestial objects. Built-in electronics include an electronic friction brake on the RA axis, zero position sensors on both axes, dual USB-C ports for firmware and control, and onboard Wi-Fi for wireless operation via PC or smartphone.

Its precision-machined all-metal housing ensures long-term reliability and stability. The mount can be used in both equatorial and alt-azimuth modes, making it a flexible and powerful solution for visual observers and traveling astrophotographers.

Technical specifications

• Mount type: Hybrid AZ/EQ

• RA drive system: StrainWave 14 harmonic gear

• DEC drive system: Backlash-free worm/belt

• RA gear ratio: 360:1

• Payload capacity without CW: 8.2 kg

• Payload capacity with CW: 12 kg

• Mount weight: 2.6 kg

• Payload-to-weight ratio: 3.17

• Structure: Precision-machined metal

• Drive motors: Stepper motors

• Hand controller: Go2Nova 8411 with OLED display (included)

• Tracking: Automatic

• Tracking speeds: 1x, 2x, 8x, 16x, 64x, 128x, 256x, 512x, MAX (6°/s)

• Emergency brake: Electronic friction brake on RA

• Zero position sensors: On both RA and DEC

• Ports: 2x USB-C, built-in Wi-Fi

• Polar alignment: External iPolar scope (included)

• Latitude range: 0° to 90°

• Azimuth range: ±6°

• Leveling: Integrated bubble level

• Power supply: 12 V DC, 5 A

• Power consumption: 0.6 A (tracking), 1 A (GoTo)

• AC adapter: 100 V – 240 V (indoor use only)

• Interfaces: ASCOM, INDI, iOptron Commander

• Dovetail saddle: Vixen-type

• Counterweight: 2.05 kg optional (#3006-05)

• Counterweight shaft: Ø20 mm x 200 mm (#P-SGP-CWS)

• Tripod interface: 3/8"-16 thread

• Optional tripod: Carbon fiber tripod #8061A

• Optional MiniPier: #8041

• Optional AZ-leveling MiniPier: #8042 (requires #8061A)

• Operating temperature: -20 °C to +40 °C (handset: -10 °C to +40 °C)

• Warranty: 2 years

Additional information
The HAE16C is ideal for fast deployment and mobile use, offering full GoTo control with excellent tracking accuracy. Its no-counterweight design and compact form make it a powerful tool for astronomers on the move.
