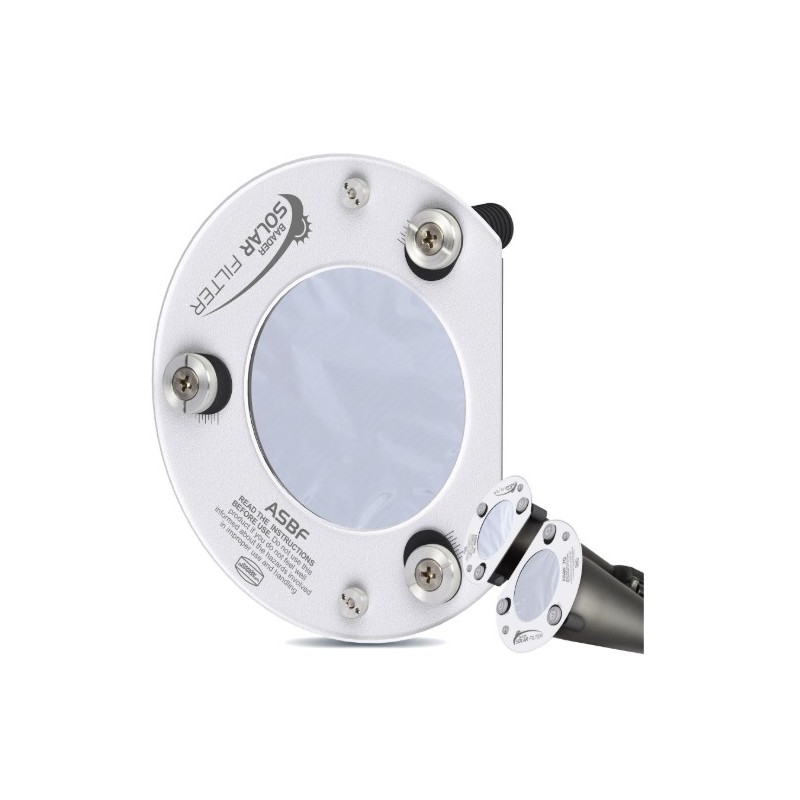

Baader AstroSolar Binocular Filter 70 mm

Baader AstroSolar Binocular Filter 70 mm

Description

The Baader AstroSolar Binocular Filter 70 mm is designed for safe visual solar observation and solar imaging with binoculars and camera lenses. Built with AstroSolar Safety Film OD 5.0, it reduces solar radiation to a safe level while preserving fine detail and image contrast. Unlike many filters that stretch the film, this model is mounted entirely stress-free to retain diffraction-limited quality.

The mounting cell combines a stabilizing plastic ring with an aluminum front frame, one side shortened to allow compatibility with virtually all binoculars, even when the central bridge is nearly closed. Three injection-molded centering bolts with brass inserts and rubber grip faces provide secure adjustment (inner clamping range 101 – 116 mm, outer clamping range 75 – 90 mm).

Non-rotating aluminum sliding fasteners with index scales allow quick and repeatable adjustment. Three safety straps with adhesive Velcro pads ensure reliable fixation under all conditions. The filter comes with black sliding washers, a 32-page instruction manual, and a cardboard storage box for safe transport.

Technical specifications

• Type: Solar filter for binoculars and camera lenses

• Brand: Baader Planetarium

• Filter size: 70 mm

• Filter material: AstroSolar Safety Film OD 5.0

• Optical density: 5.0

• Solar wavelength: White light (integral spectrum)

• Cell: Plastic stabilizer ring with aluminum frame

• Filter mounted: Yes, stress-free

• Shortened cell side: Yes, for binocular compatibility

• Inner clamping range (Ø 13 mm bolts): 101 – 116 mm

• Outer clamping range (Ø 13 mm bolts): 75 – 90 mm

• Inner diameter / clear aperture: 70 mm

• Outer diameter: 130 mm

• Supplied accessories:

  • 3 centering bolts with brass inserts and rubber grips

  • 3 safety straps with adhesive Velcro pads

  • Black sliding washers

  • 32-page instruction manual

  • Cardboard transport box

• Usage: Visual solar observation and imaging

• Net weight: 0.07 kg

• Manufacturer reference: 2459327

• EAN code: 4047825033093
