BAADER AMICI PRISM DIAGONAL 45° VIEWING ANGLE 24 mm – 1.25" BARREL

BAADER AMICI PRISM DIAGONAL 45° VIEWING ANGLE 24 mm – 1.25" BARREL

Description:

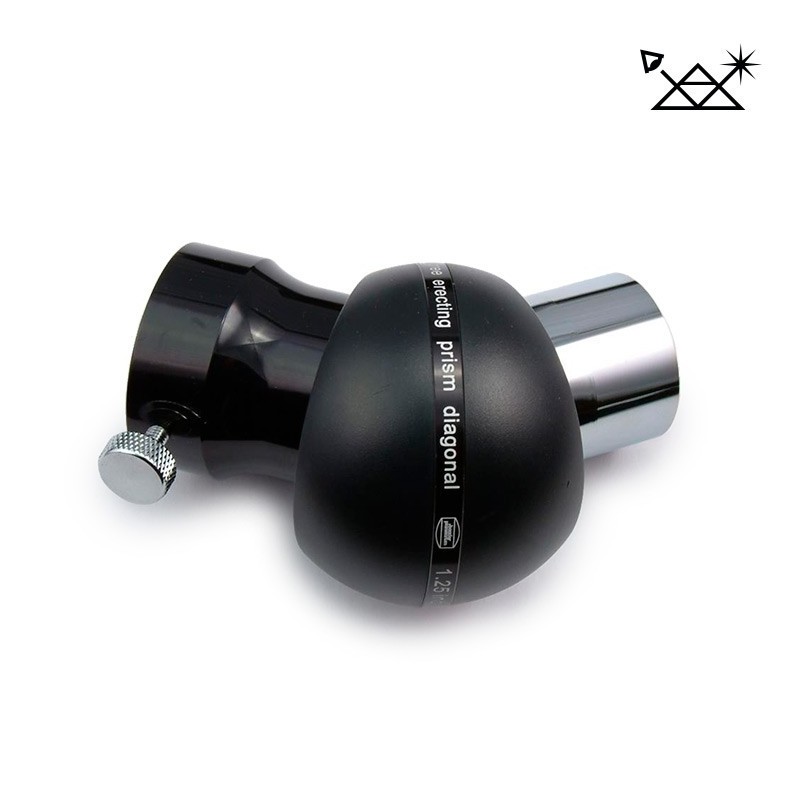

The Baader 45° Amici prism diagonal provides a fully erect and laterally correct image for terrestrial observing. It features a wide 24 mm clear aperture and a 1.25" barrel, ensuring compatibility with most standard refractors and spotting scopes.

While many low-cost erecting prisms offer only a 19 mm aperture—causing vignetting or image darkening at low powers—this Baader model offers a full 24 mm opening for unrestricted viewing, even with wide-angle eyepieces.

The prism is housed in a precision-machined body, with a compression ring clamp to securely hold the eyepiece. It is an ideal solution for nature observation, landscape viewing, or daytime astronomical use when image orientation is important.

Technical specifications:

• Type: Amici prism diagonal

• Angle: 45° viewing angle

• Image orientation: upright and left-right correct

• Clear aperture: 24 mm

• Input: 1.25" female barrel

• Output: 1.25" male barrel

• Clamp: metal thumbscrew

• Best use: terrestrial

Additional information:

• Not suitable for high-magnification planetary use

• Perfect for terrestrial refractor-based setups

• Full aperture eliminates edge darkening

• High-quality Baader construction

• Compact and user-friendly
