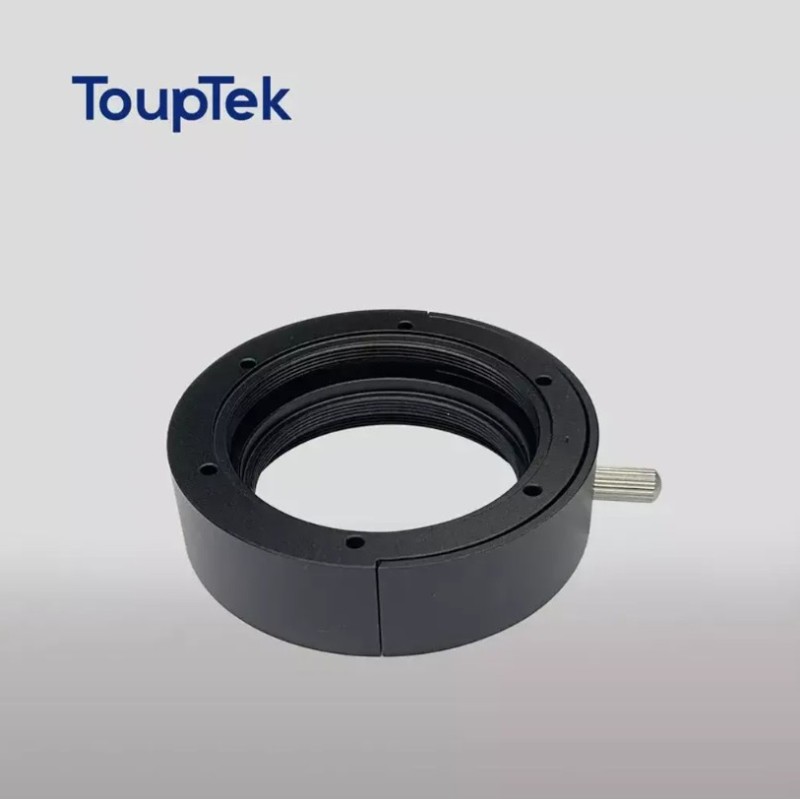

Tiroir à filtre ToupTek M42/M54

Touptek M54 Filter Drawer

Features M54 Female Thread On Both Side. 20mm Thickness. Customizable To Be Universally Compatible With ZWO Or Touptek Camera WIth Or Without OAG With Optional Adapter

Connection Method (To M48 Threaded Flattener/Reducer)

ZWO Camera 1'' Or 4/3 Sensor (Direct Without OAG)

• Require Optional M54M-M48F 16.5mm Adapter
• Require Optional M54M-M42M 1mm Adapter (Screw To Side A - 1mm)
• ZWO Camera M42 With 11mm Spacer Back Focus - 17.5mm
• Filter Drawer Back Focus - 20mm
• Total Back Focus - 16.5 + 1 + 20 + 17.5 = 55mm

ZWO Camera 1'' Or 4/3 Sensor (Direct With ZWO OAG)

• Require Optional M54M-M48F Ring
• Require Optional M54M-M42M 1mm Adapter (Screw To Side B - 0mm)
• ZWO OAG Back Focus - 17.5mm
• ZWO Camera M42 With 11mm Spacer Back Focus - 17.5mm
• Filter Drawer Back Focus - 20mm
• Total Back Focus 17.5 + 20 + 17.5 = 55mm

ZWO Camera 2600MC/MM (Direct Without OAG) - Using M42 Thread

• Require Optional M54M-M48F 16.5mm Adapter
• Require Optional M54M-M42M 1mm Adapter (Screw To Side A - 1mm)
• ZWO Camera 2600MC/MM Back Focus -17.5mm
• Filter Drawer Back Focus - 20mm
• Total Back Focus - 17.5 + 20 + 17.5 = 55mm

ZWO Camera 2600MC/MM (Direct With OAG) - Screw On To Plate

• Require Optional M54M-M48F Ring
• ZWO OAG Back Focus - 17.5mm
• ZWO Camera 2600MC/MM Back Focus - 17.5mm
• Filter Drawer Back Focus - 20mm
• Total Back Focus - 17.5 + 20 + 17.5 = 55mm

ZWO Camera 2400/6200 (Direct Without ZWO OAG) - Using M54 Thread

• Require Optional M54M-M48F 16.5mm Adapter
• Require Optional M54M-M54M 1mm Adapter (Screw To Side A - 1mm)
• ZWO Camera 2400/6200 With 11mm Spacer Back Focus - 17.5mm
• Filter Drawer Back Focus - 20mm
• Total Back Focus - 17.5 + 20 + 17.5 = 55mm

ZWO Camera 2400/6200 (Direct With ZWO OAG) - Screw On To Plate

• ZWO OAG Back Focus - 17.5mm
• ZWO Camera 2400/6200  Back Focus - 17.5mm
• Filter Drawer Back Focus - 20mm
• Total Back Focus - 17.5 + 20 + 17.5 = 55mm
• Please Note That ZWO M42 OAG Might Have Vignetting

ZWO Camera To Touptek OAG Option

• Touptek OAG Is 17.5mm Back Focus, With Include Screw To Connect To Touptek Filter Drawer
• OAG + Filter Drawer - 37.5mm Back Focus
• ZWO Camera M42 With 11mm Spacer - 17.5mm Back Focus
• ZWO 2600MM/MC - 17.5mm Back Focus
• ZWO 2400/6200 - 17.5mm Back Focus
• Total Back Focus For All Model - 55mm

Touptek Cooled Camera Connection (Without OAG) -Using M42 Thread

• Require Optional M54M-M48F 16.5mm Adapter
• Require Optional M54M-M42M 1mm Adapter (Screw To Side A - 1mm)
• Filter Drawer Back Focus - 20mm
• Camera Back Focus - 17.5mm
• Total Back Focus - 17.5 + 20 + 17.5 = 55mm

Touptek Cooled Camera Connection (Without OAG) - Screw On To Plate

• Require Optional M54M-M48F 16.5mm Adapter
• Filter Drawer Back Focus - 20mm
• Total Back Focus - 16.5 + 20 + 17.5 = 54mm

Touptek Cooled Camera Connection (With ZWO OAG) -Using M42 Thread

• Require Optional M54M-M48F Adapter
• Require Optional M54M-M42M 1mm Adapter (Screw To Side A - 1mm)
• Filter Drawer Back Focus -20mm
• ZWO OAG Back Focus - 16.5mm
• Touptek Camera Back Focus - 17.5mm
• Total Back Focus - 17.5 + 20 + 17.5 = 55mm

Touptek Cooled Camera Connection (With ZWO OAG) - Screw On To Plate

• Require Optional M54M-M48F 16.5mm Adapter
• Filter Drawer Back Focus - 20mm
• ZWO OAG Back Focus - 16.5mm
• Touptek Camera Back Focus - 17.5mm
• Total Back Focus - 16.5 + 20 + 17.5 = 54mm

Touptek Cooled Camera Connection (With Touptek OAG) -Using M42 Thread

• Touptek OAG Is 17.5mm Back Focus, With Include Screw To Connect To Touptek Filter Drawer
• Require Optional M54M-M42M 1mm Adapter (Screw To Side B - 0mm)
• Filter Drawer Back Focus - 20mm
• Touptek Camera Back Focus - 17.5mm
• Total Back Focus - 17.5 + 20 + 17.5 = 55mm

Touptek Cooled Camera Connection (With Touptek OAG) - Screw On To Plate

• Touptek OAG Is 17.5mm Back Focus, With Include Screw To Connect To Touptek Filter Drawer
• Filter Drawer Back Focus - 20mm
• Touptek Camera Back Focus - 17.5mm
• Total Back Focus - 17.5 + 20 + 17.5 = 55mm
