Baader Flatfield Box 1250

Baader Flatfield Box 1250

Description

Baader Planetarium’s Flatfield Box 1250 is the largest model in the FFB family (450 / 650 / 850 / 1250 mm). Built for observatories hosting very large instruments, it supplies laboratory-grade flats regardless of sky conditions.
The 1342 x 1342 x 200 mm enclosure combines a multi-layer infinity-mirror chamber with a dense WRGB LED array, creating gradient-free illumination across the visual spectrum with no central dimming. The side-mounted FlatPowerBox drives White, Red, Green and Blue channels independently and stores eight user presets, all managed through any Web browser.
A high-frequency flicker-free driver supports exposures from 1 ms to several seconds, letting imagers balance flat brightness for LRGB, narrowband, one-shot colour and dual-band sensors. A rigid Minitech 30 mm aluminium frame supports wall, bench or rotating-dome mounting, and the panel can double as adjustable WRGB observatory lighting. Power is 12 V DC with built-in breaker protection.

Specifications

• Clear aperture : 1250 mm
• External size : 1342 x 1342 x 200 mm
• Max telescope, fixed : 1200 mm (48")
• Max telescope, dome : 1150 mm (46")
• Illumination : independently dimmable WRGB LEDs
• Exposure range : 1 ms – several s, flicker-free
• User presets : 8 via Web UI
• Frame : Minitech 30 mm aluminium profile
• Mounting options : wall, bench, rotating dome
• Power input : 12 V DC, breaker-protected
• Net weight : 0.00 kg
• SKU 2205125 EAN 4047825059642
• Manufacturer : Baader Planetarium

Additional info

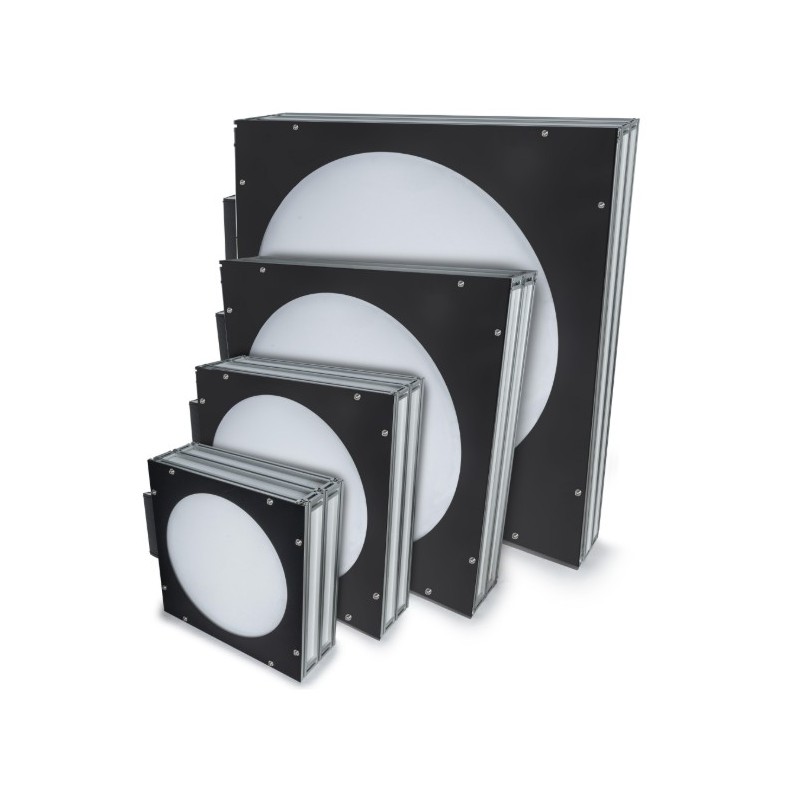

Other sizes (450 mm, 650 mm, 850 mm) share the same FlatPowerBox control and infinity-mirror design.
