WandererAstro WandererCover V4-EC IR 125 mm

WandererAstro WandererCover V4-EC IR 125 mm

Description

The WandererAstro WandererCover V4-EC IR 125 is a 125 mm motorized flat panel for flat-field imaging and telescope protection. It adds an infrared remote for cable-free control when not using ASCOM. Its reinforced motor delivers 50 % more load capacity and reliable performance down to –25 °C. The built-in micro-encoder offers ±0.25 ° positioning accuracy, while the integrated heater keeps the panel dry all night or quickly removes dew in the morning. A 255-level dimming controller with doubled PWM frequency eliminates banding even at 0.1 s exposures, enabling fast narrowband flats. Automatic open/close detection, exclusive cable management, soft protective pads, and compatibility with ASIAIR Plus, ToupTek StellaVita, ASCOM, and INDI make it a comprehensive astrophotography solution.

Technical Specifications

• Luminous diameter: 125 mm

• Outer diameter: 150 mm

• Weight: 322 g

• Heating power: 9 W

• USB: Type-B 2.0

• Power: 12 V 2 A DC 5.5 × 2.1 mm

• Included IR remote controller

• Position accuracy: ±0.25 °

• Reinforced motor (+50 % load)

• Tested life: >3 000 open/close cycles

• Operating temperature: down to –25 °C

• Control via ASIAIR Plus, ToupTek StellaVita, ASCOM, INDI

• Included cables: USB 2.0 (1 m), DC5521 male-to-male (1 m)

• Accessories: 4 nylon ties, IR remote

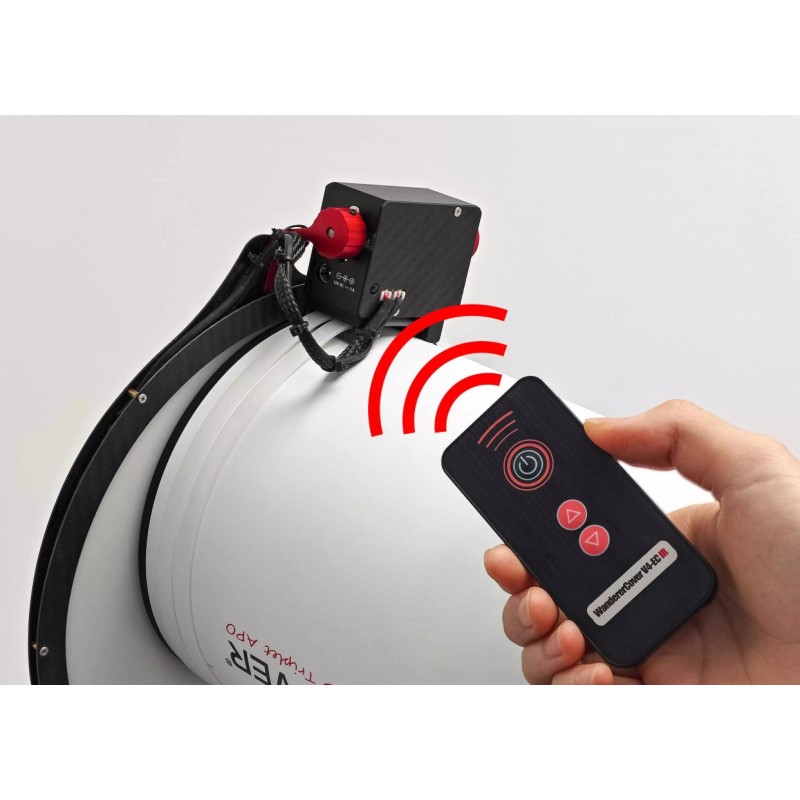

The only difference between the V4-EC IR and V4-EC is the addition of infrared remote control functionality. This allows users to control the WandererCover via infrared remote, making it convenient for field or ASIAIR use. Only a single 12V power cable is required—no need to connect a USB cable if not controlling it using ASCOM, simplifying your field setup.

Exclusive cable management solution prevents damage to power cables during operation; Soft cushioning pads protect your telescope from scratches; Includes cable ties for universal installation

Built-in micro-encoder provides real-time, accurate feedback on cover position, allowing users to remotely check the angle status without opening the monitoring camera. Repeat positioning accuracy of up to ±0.25 degrees ensures precise open/close operations every time. Customizable opening/closing at any angle.

Features a brand-new motor with over 50% increased load capacity, ensuring durability and preventing gear box failure. Designed to withstand low temperatures, it operates reliably even in winter conditions as low as -20°C! After testing, the life of WandererCover V4-EC exceeds 3,000 opening and closing cycles.

Thanks to the encoder, V4-EC provides automatic detection of the open and closed position*. If your device is not around and manual setting is not possible, WandererCover can automatically detect obstacles and set the open and closed position.

*It is always recommended to set the open and closed angles manually! Use automatic detection as the last option only when the flat panel angle cannot be observed. It is normal for the motorbox to heat up during automatic detection. The angle detected is affected by many factors and success is not guaranteed. Do not try multiple times if unsuccessful.

The new ASCOM driver makes use easier. It also supports automatic or manual port selection and connection of up to 6 devices simultaneously.

The new dimming controller boosts PWM dimming frequency by 100%, effectively reducing the occurrence of banding and ensuring no banding during exposures of 0.1 seconds or longer. 255-level dimming meets the flat-field shooting needs, from color cameras to narrowband imaging. At maximum brightness, capturing 3nm narrowband only takes around 1 second!

Low temperature resistant design, able to work normally in environment as low as -25℃ (-13℉).

With the latest firmware, it supports control via ZWO ASIAIR Plus, ToupTek StellaVita, and any device capable of controlling the DC switch. Please refer to user manual to check it out!

Specification / Dimensions

What's in the box
