Baader M48 Tilter
179.00
Tax included
Baader M48 Tilter
Baader M48 tilt corrector, continuous 0 to 1° adjustment, optical length 9.50 to 10.25 mm, fully compatible with Baader’s M48 system.
Baader M48 Tilter
Description

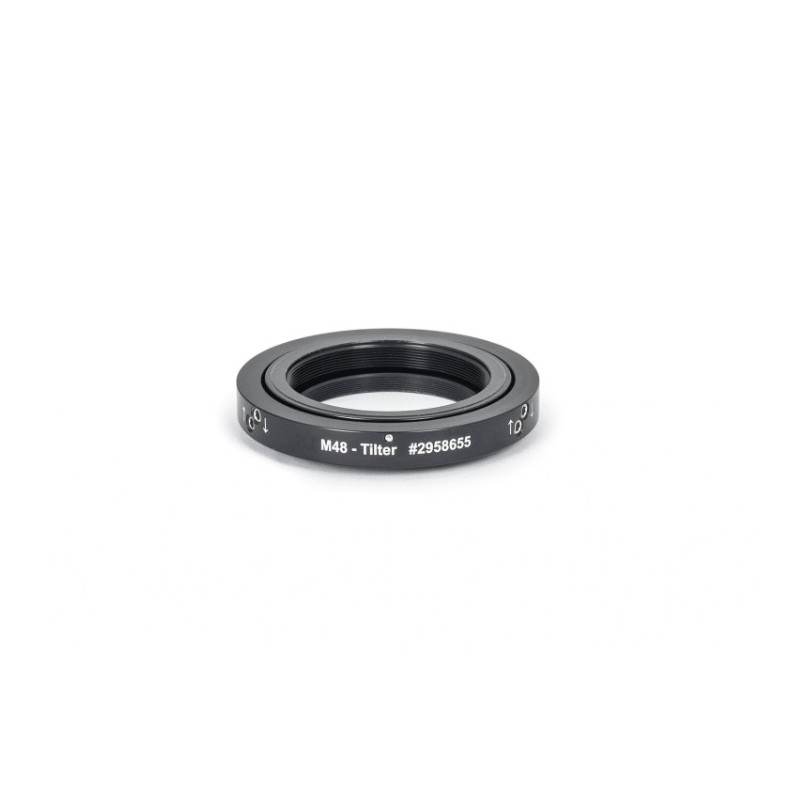

The Baader M48 Tilter eliminates sensor tilt by offering up to 1° angular adjustment. Featuring M48 threads on both sides, it integrates seamlessly into any M48 imaging train while adding only 9.50 to 10.25 mm of back-focus. Ideal for perfectly aligned astro-cameras and filter wheels.
Specifications
• Adapter family: Baader M48 system
• Type: tilter, 0 to 1° range
• Optical length: 9.50 to 10.25 mm
• Telescope side thread: M48 female
• Camera side thread: M48 male
• Outer diameter: 72 mm
• Net weight: 0.06 kg
• Manufacturer: Baader Planetarium
• SKU: 2958655, EAN 4047825056405
Additional info
Fits any accessory that uses standard M48 threading.
