Baader M54 Tilter
196.00
Tax included

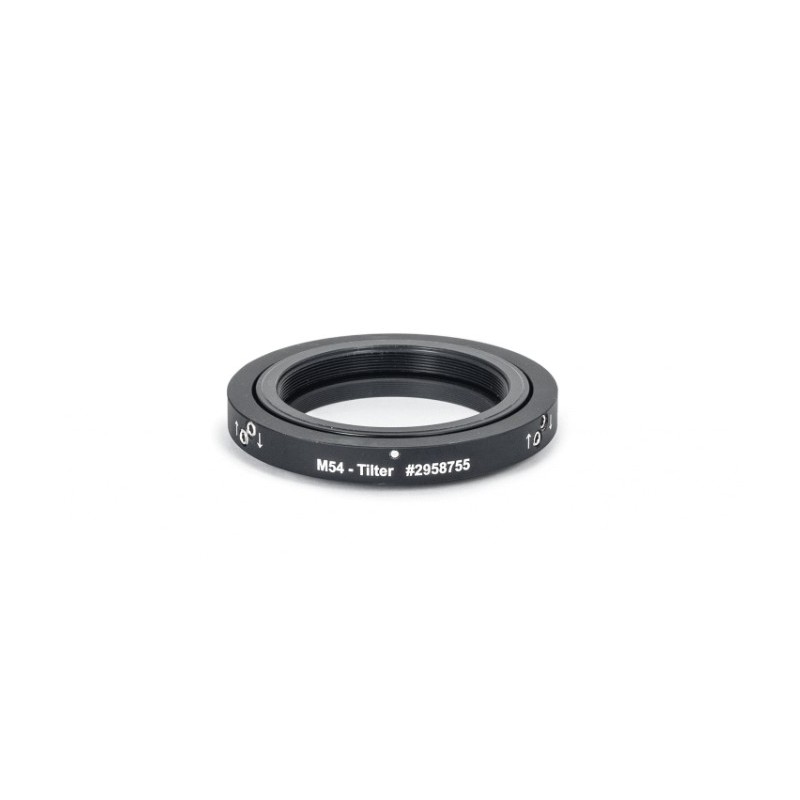

Baader M54 Tilter
Baader M54 tilter corrects up to one degree of sensor tilt while adding only 9.50 to 10.25 mm of back focus. Fully threaded M54 x 0.75 on both sides for plug-and-play use in any M54 imaging train.
Baader M54 Tilter
Description
The Baader M54 Tilter restores true orthogonality between the optical axis and camera sensor. Three adjustment screws provide smooth, precise tilt removal over a one-degree range. With female and male M54 x 0.75 threads, it drops straight into an M54 system without significant back-focus impact, maintaining edge-to-edge star quality on large format detectors.
Specifications
• Adapter family: Baader M54 system
• Type: tilt corrector 0 – 1°
• Optical length: 9.50 – 10.25 mm
• Telescope side thread: M54 x 0.75 female
• Camera side thread: M54 x 0.75 male
• Outer diameter: 78 mm
• Net weight: 0.07 kg
• Manufacturer: Baader Planetarium
• SKU: 2958755, EAN 4047825052285
Additional info
Seamlessly mates with all Baader M54 components.
