Baader Levelling Support GM 4000 / L-350, 15 cm (2451185H)
394.00
Tax included
Baader Levelling Support GM 4000 / L-350, 15 cm (2451185H)
Precision adjustment for GM 4000 and L-350 mounts on BHP pillar
Baader Levelling Support GM 4000 / L-350, 15 cm (2451185H)
Description

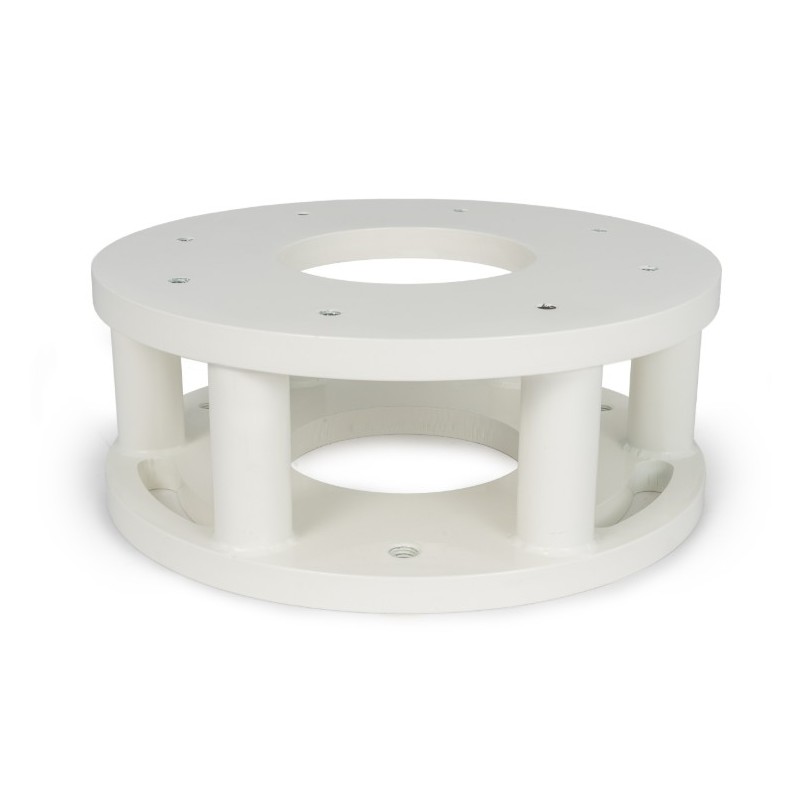

The Baader levelling support (150 mm height) corrects foundation imperfections or north-south misalignments for GM 4000 and PlaneWave L-350 mounts. Made of solid steel, it includes two precision-milled plates separated by six bars. The top plate is threaded to match the mount’s base.
Designed for BHP conical pillars (60 to 165 cm, up to 600 kg). Requires lower steel support #1454090.
Technical specifications
-
Type: Levelling support
-
Compatibility: GM 4000 / L-350
-
Height: 150 mm
-
Structure: Solid steel, 6 spacers
-
Weight: 31.7 kg
-
Item code: 2451185H
-
EAN: 4047825039156
-
Manufacturer: Baader Planetarium
-
Requires support #1454090
Additional information
-
Top plate: Precision milled and threaded
-
Material: Solid steel
-
Use: Permanent observatory installations
-
Optimized for alignment and stability
-
For BHP pillars only
